GemmoFtir™ - FTIR reloaded

GemmoFtir™ is a low-cost FTIR- spectrometer specifically designed and built for diamond & gemological laboratories.

FTIR (Fourier Transform Infrared Spectrometer) is a mandatory tool in the modern gemological laboratory. It is routinely used for testing some of the most important gems such as diamond, emerald, corundum, alexandrite, jade, amethyst, amber and turquoise.

GemmoFtir™ works with the same familiar software as other MAGILABS products, provided with it's own growing FTIR- libraries. Each important gem species has its own library and a set of further analysis applications.

Download brochure


 Fully automatic infrared spectrum acquisition for loose gems from 0.05 to 50+ ct

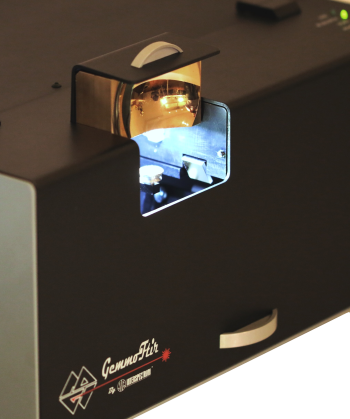

 High quality gold coated DRIFT (Diffuse Reflectance) mirror system

 High presicion sample height adjustment (for specular reflectance acquisition)

 Works best on faceted gems but many times gives results even for rough

 Minimal sample preparation (cleaning) is required

 Place the gem table down on the sample stage, close the lid & Go!


Software - It Does Make a Difference

Following easy steps, the AutoScan wizard produces high quality results starting from the very first use. No prior experience is required - just insert the sample, close the lid and go. The software is loaded with specific analyses for the most important gems, such as diamond, emerald, alexandrite, amber, amethyst, sapphire and turquoise.

 Comes with pre-installed Dell™ laptop computer
 Free software with built-in gemological FTIR-library
 AutoScan feature - follow the wizard and make no mistakes
 Built-in update feature installs free library updates via the Internet
 Fast USB connection to Windows PC (or Mac with Windows partition)
 Advanced Zoom & Pan methods, floating & nearest point cursors
 Drag & drop spectra vertically for reading clearance
 Peak Smoothing Algorithms: Boxcar, Savitzky-Golay, Spline
 Peak Finder, Derivates, noise etc. advanced analysis methods
 Multi-spectra tools for comparing up to 50 spectra simultaneously








Hardware & Technical Specifications

We are known to operate only with those taking the pride and applying the highest standards of workmanship for their products. GemmoFtir™ has been designed and manufactured together with Interspectrum - an Estonian company whose infrared spectrometers have been embedded in space stations for decades.

 CNC milled stainless steel & aluminum construction - no cheap plastic parts
 Gold coated DRIFT- unit and solid gold sample stage for maximum signal strength
 High precision interferometer with 1, 2, 4, 8, 16 and 32 cm-1 resolutions
 Range: ~ 400-7000 cm-1
 24 bit A/D resolution, S/N ratio up to 15000:1
 Multi-coated KBr beamsplitter, low noise DLATGS- detector
 Small footprint suitable for desktop;  25 x 35 cm (9.9" x 13.8")
 Nitrogen purge option available for reducing atmospheric artifacts (H2O/CO2)
 Developed and manufactured together with Interspectrum

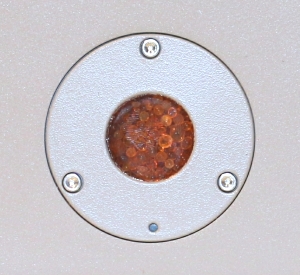

 Renewable silica gel desiccator with visual humidity indication
 Electrically safe 12V system supplied with laptop type transformer (12VDC 3A)
 LED- illuminated sample chamber
 Long-life high intensity ceramic IR source with idle heating (<10W power consumption)
 High quality carrying case
 Optional transmission mirror setup available
 15-28ºC operating temperature range

What is included

 GemmoFtir™ Fourier Transform Infrared Spectrometer
 Laptop computer with pre-installed software
 Integrated DRIFT module with gold sample stage and sample cup
 12VDC 3A laptop type transformer, 100-240VAC 50/60Hz input with US, EU or GB plug
 USB Cable, 1 meter
 USB flashdrive including Operating Instructions
 200 grams of extra silicagel for the desiccator
 Tools set & anti-static dust brush
 Sturdy carrying case made in Germany
 1 year warranty

Requirements

 Internet connection (optional, for library updates)
 110-240V AC or 12VDC (3A)
 Oven or microwave oven for regenerating silica gel



Some important GemmoFtir™ - applications

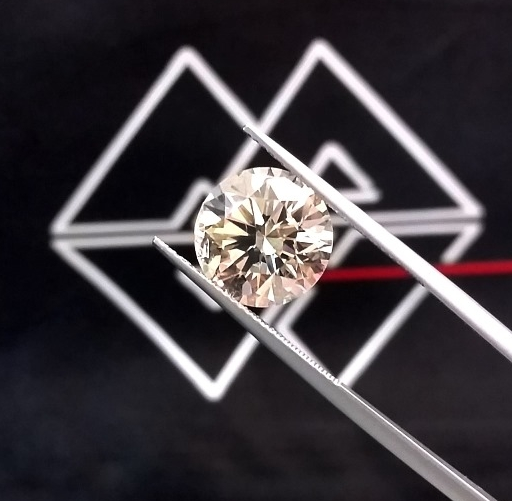

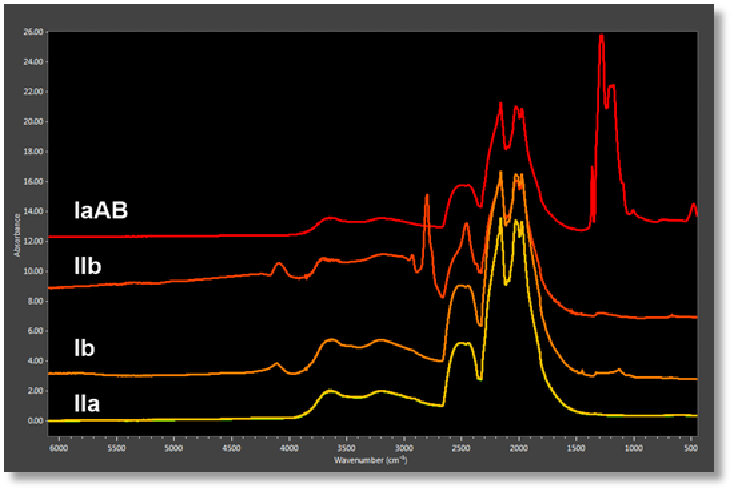

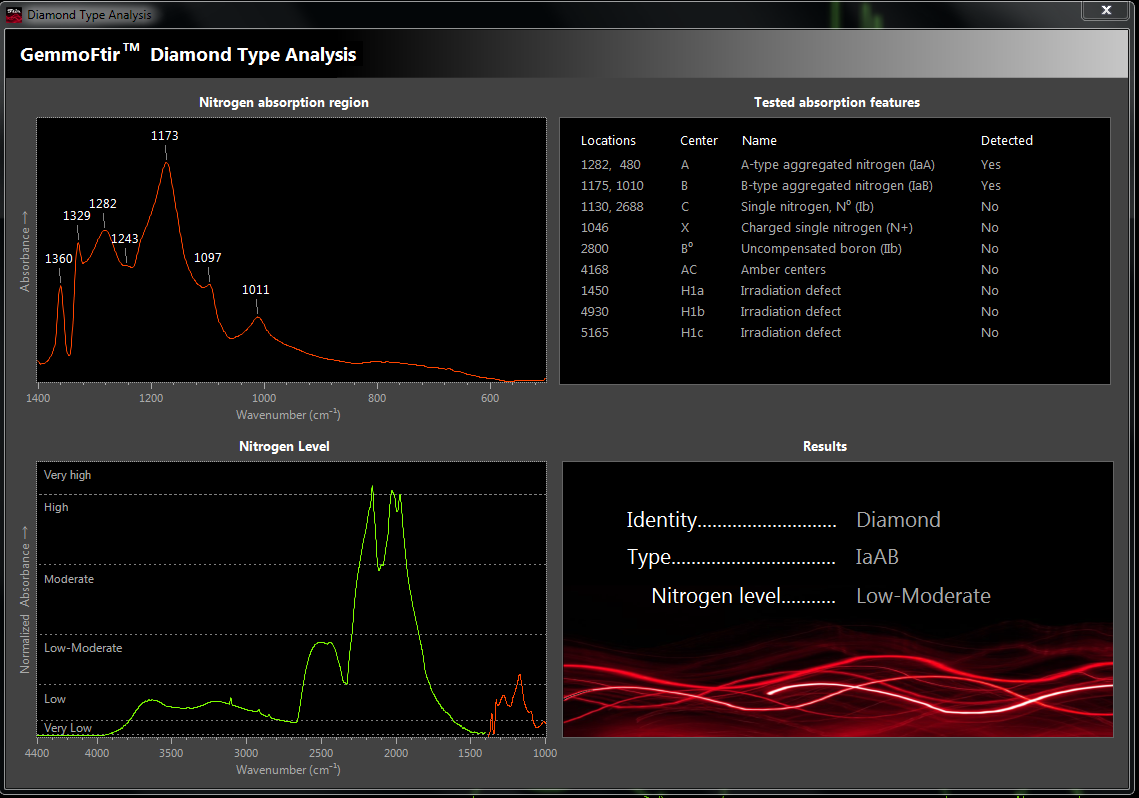

 Diamond typing - the core of diamond analysis. Peace of
mind for >95% of diamonds on the market.

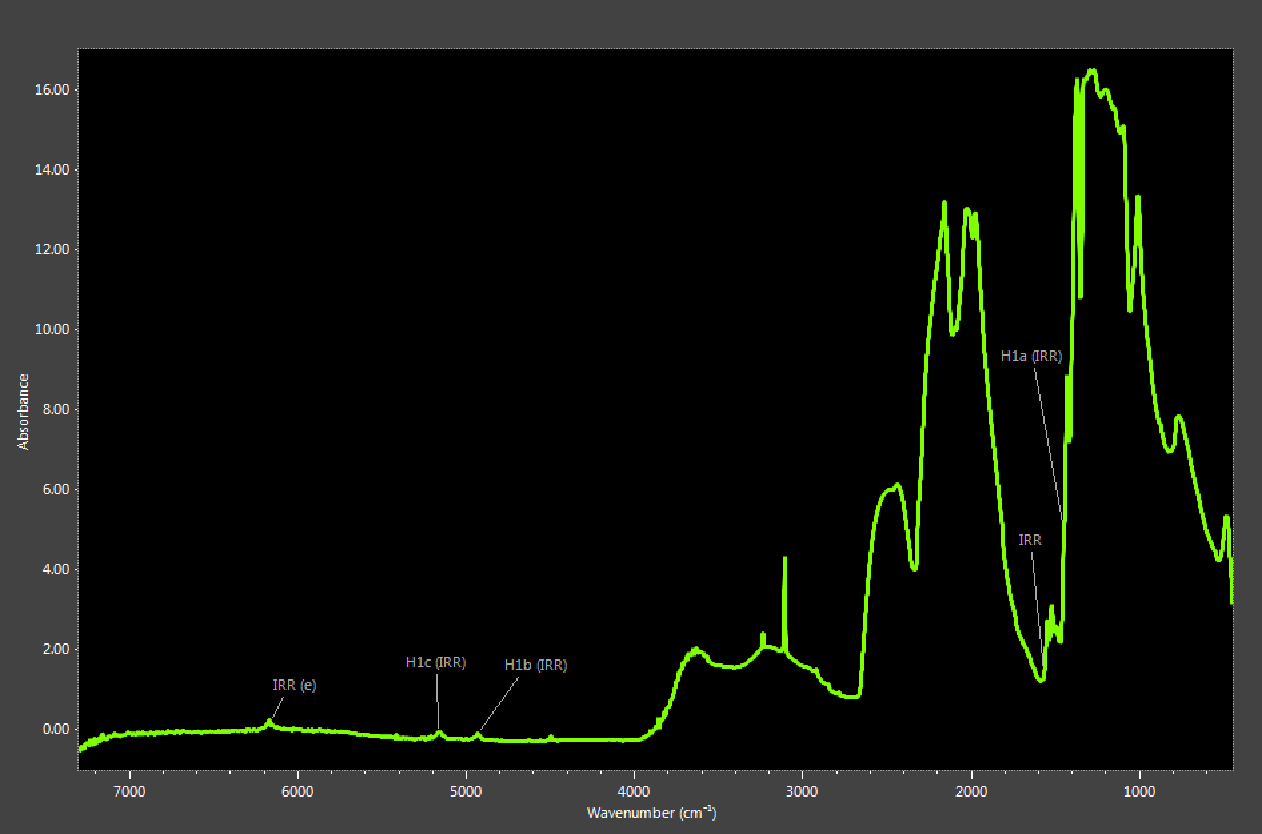

 Diamond treatments detection

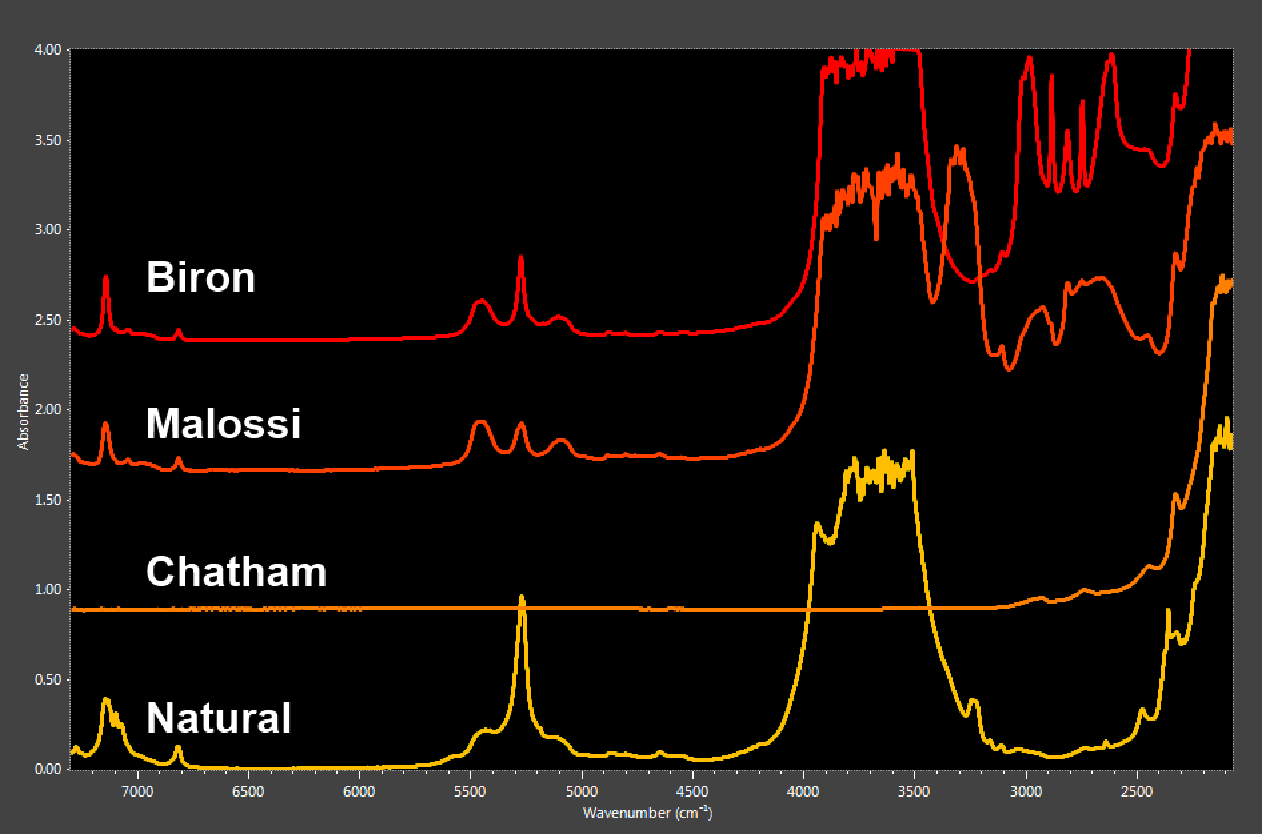

 Natural vs. synthetic emerald & aquamarine

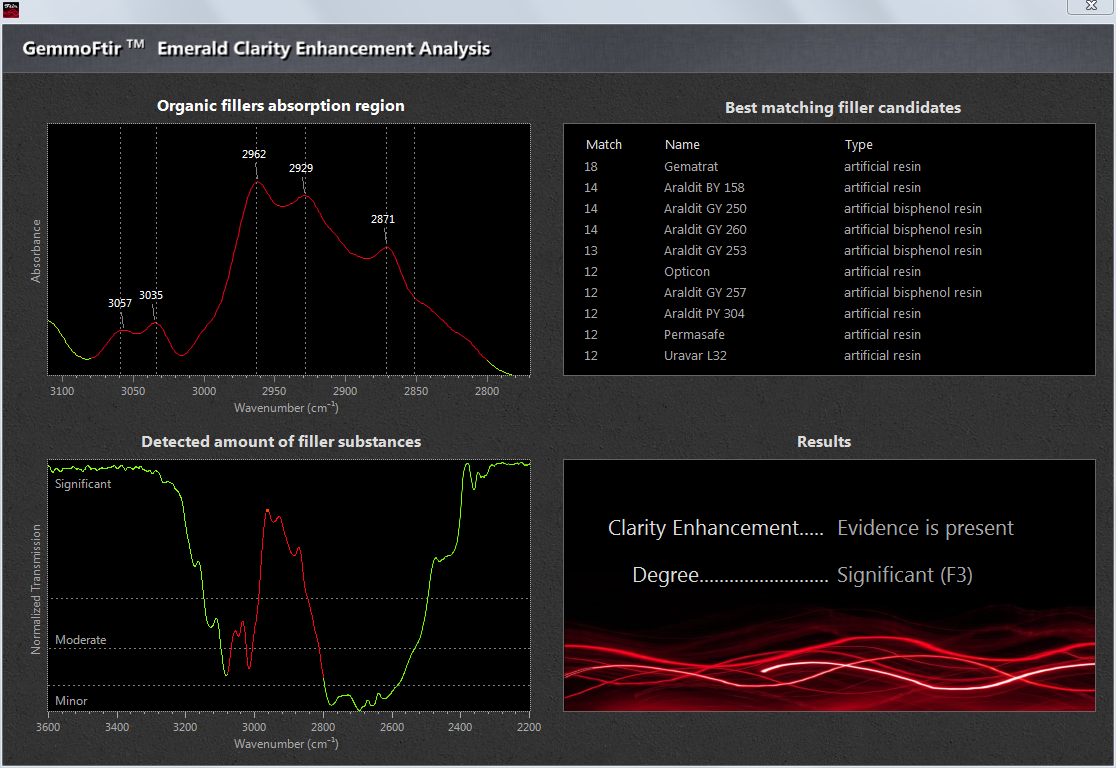

 Emerald Clarity Enhancement Analysis

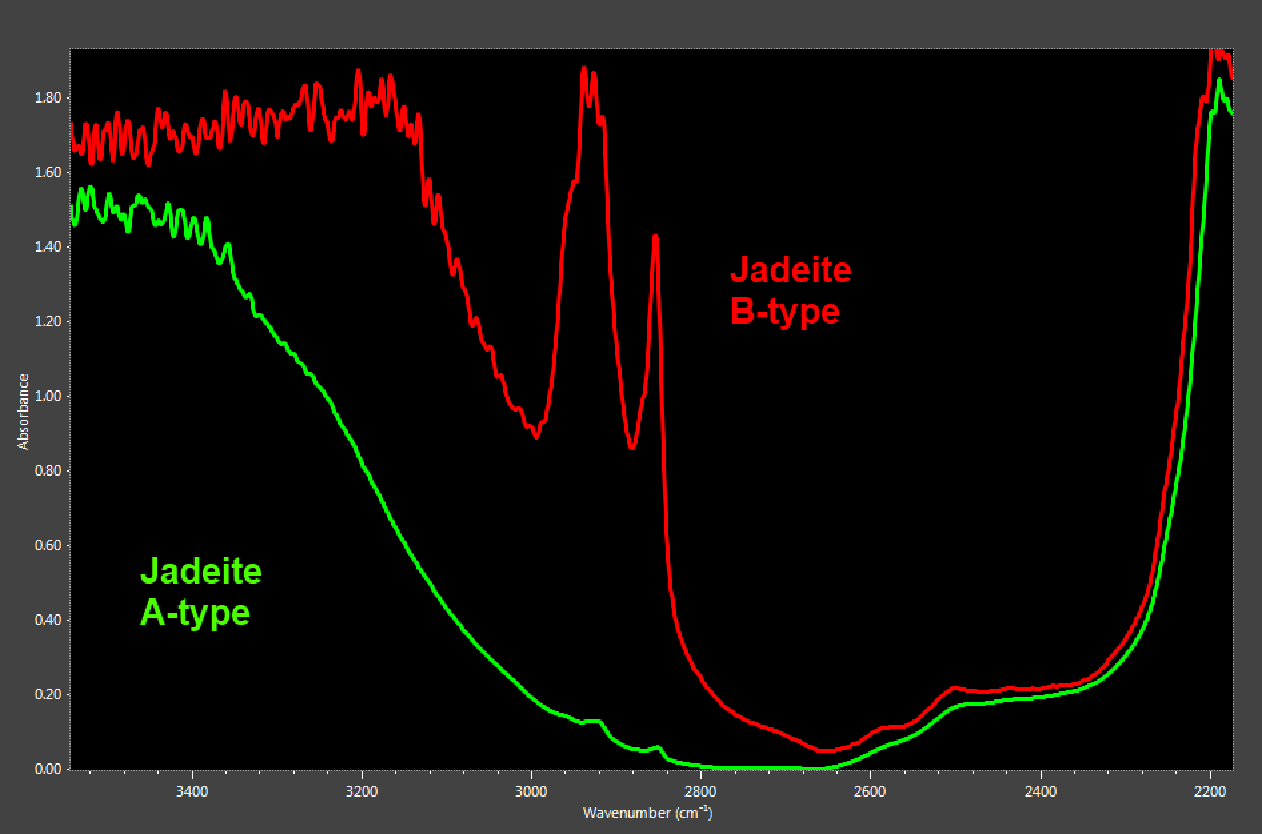

 Identification of jade impregnation (A-jade vs. B-jade)

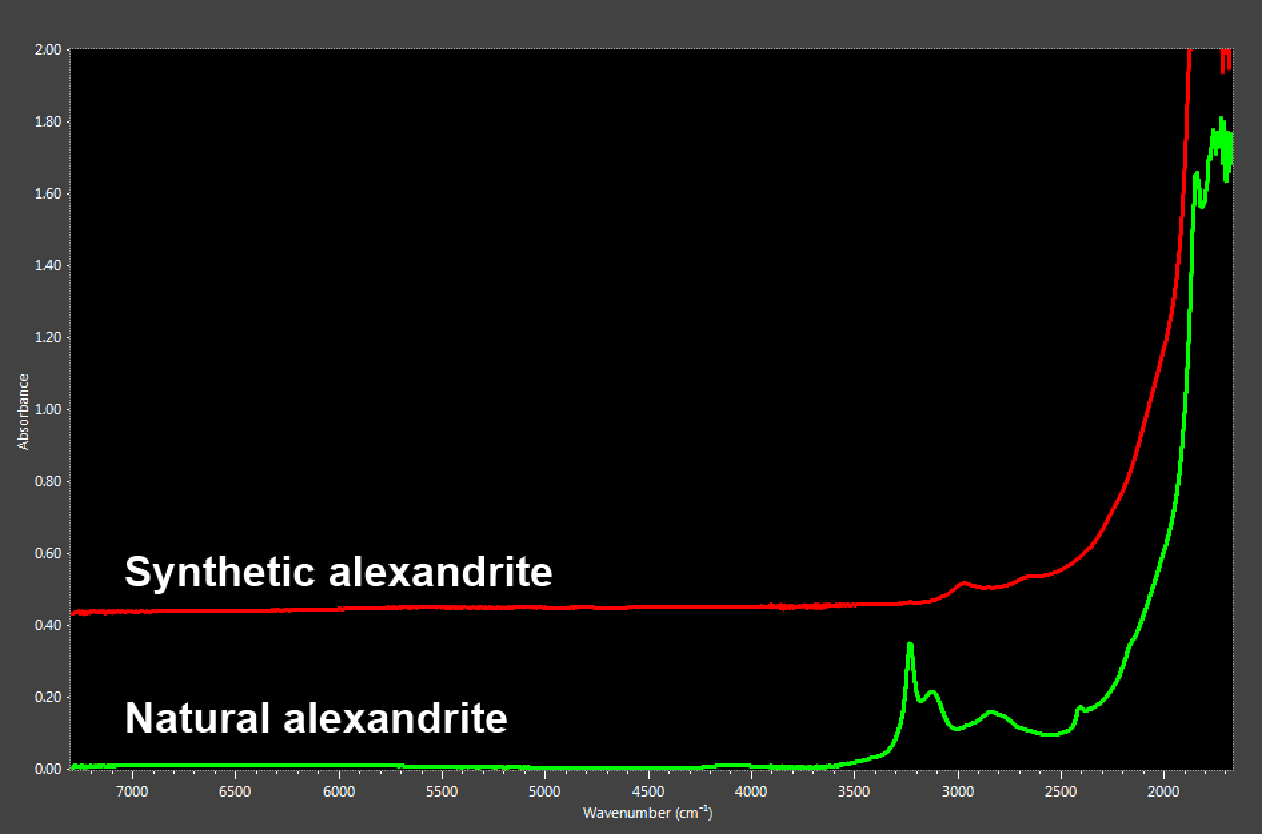

 Natural vs. synthetic alexandrite

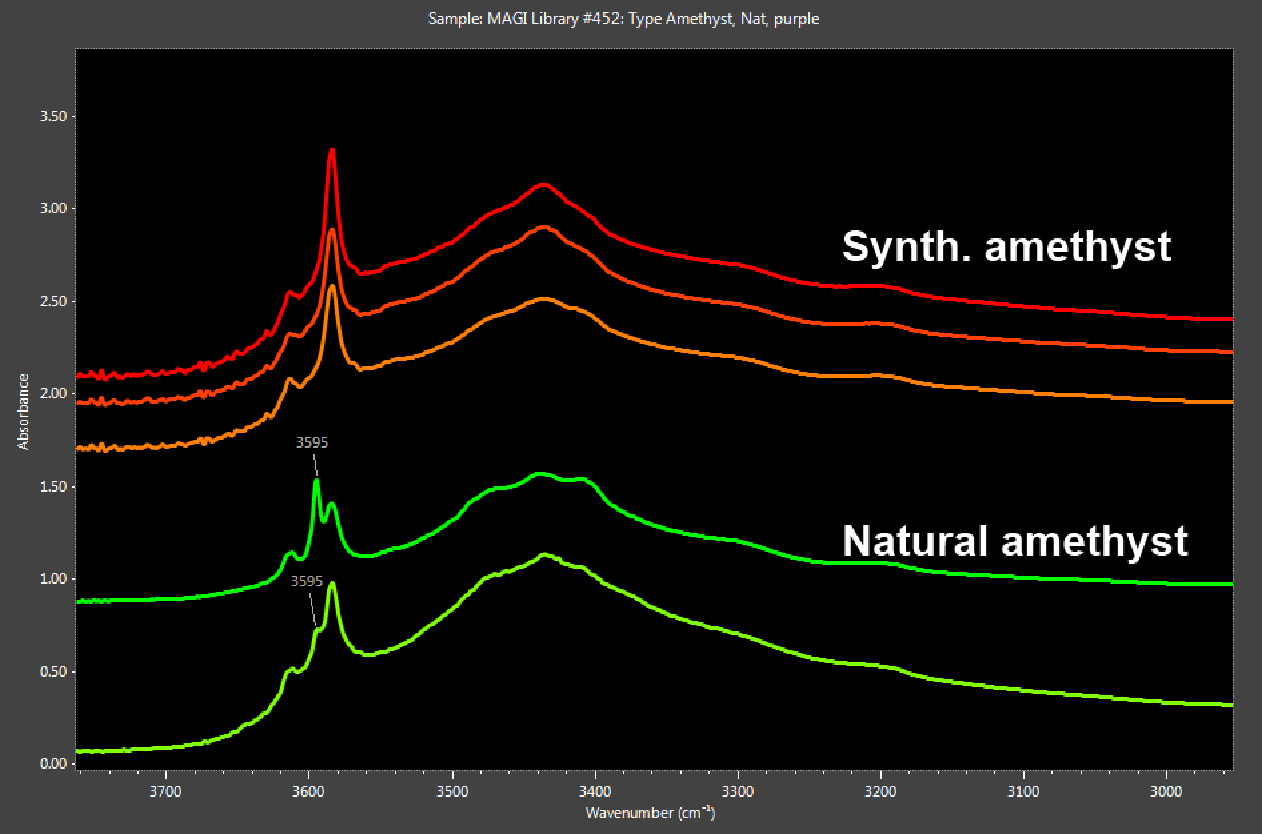

 Natural vs. synthetic amethyst

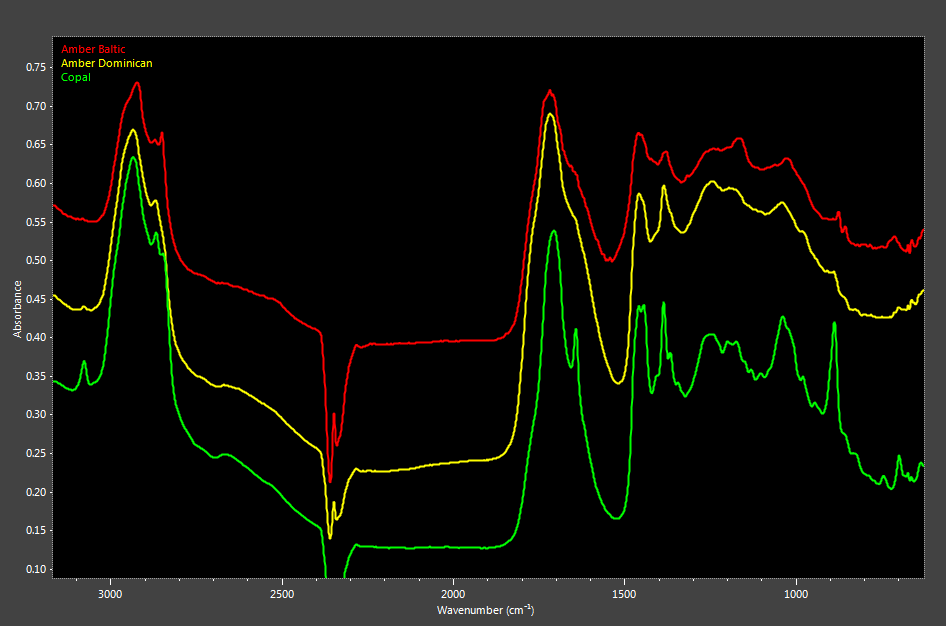

 Amber & copal analysis





Installation & Maintenance

GemmoFtir™ can be installed by the end user and does not require for technician visit on site. The system is shipped with a laptop computer having pre-installed and tested software.

GemmoFtir™ can be installed on any flat table surface. It has vibration damping feet and intelligent sensors for aborting the acquisition temporarily in case of excessive vibration.

GemmoFtir™ has been designed to require only minimal maintenance. Silica gel of the desiccator needs to be renewed monthly by heating it in a microwave oven for 2-3 minutes. The gel changes its color from orange (dry) to green (wet), giving a visual indication for the right timing. Alternatively, low cost and non-poisonous gel can be exchanged to fresh one and used material can be freely disposed as normal waste.

Lifetime of the ceramic infrared source is greatly enhanced by heating it continuously. For this reason full time access to power outlet is highly recommended. Heating consumes less than 10W of energy.

Warranty

MAGILABS Warrants to the original purchaser of the GemmoFtir™ that the unit will be free from defects in material and workmanship for a period of 12 months from the date of original shipment.

GemmoFtir™ contains no user serviceable parts and components. The enclosure is sealed with a holographic label in order to prevent unauthorized maintenance. Any attempt, alteration and modification of the machine and/or the seal not made or formally authorized by MAGILABS will void and nullify the warranty. The warranty does not cover any of the following conditions:

  • MAGILABS seal and/or serial label has been tampered or removed.
  • Damage caused during installation and/or transportation of the unit.
  • Damage caused by modification or repairs not authorized or made by MAGILABS.
  • Unusual physical or electrical stress or power fluctuations.
  • Normal wear and tear.
  • Abuse or improper and unreasonable use, mistreatment or neglect.

Return & Repairs

For warranty returns and repairs, written proof of original purchase date must be provided. The unit returned for repair or replacement must be properly packaged to avoid damage. Warranty repairs will be made, at our option, on-site or at MAGILABS facility.
